Videotutorial – siemens nx 12 – surfaces – Hexagon Grill – „easy“

7. Juli 2020 Wolfgang Walden

Aus

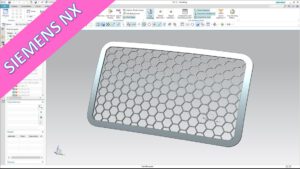

An easier version of the hexagon grill in siemens nx 12 – using the „global shaping“ command I was able to bend it in 2 directions – enjoy!
