Onshape – video tutorial – the fourth one: crankshaft – kurbelwelle – transform with copies and variables

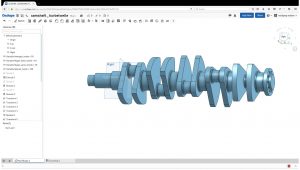

So this time I´ve tried to do a more complex model – a  crankshaft – with variables and associative copies. It worked pretty well. I made some small mistakes but – you should remember I ´ve used onshape only 3-4 times before. This video is done „quick“ and „dirty“ so you can watch all my „happy accidents“ and their solution 🙂 – Enjoy!
