_____ Part Design

The exercises from my Siemens NX Trainings

Videotutorial – siemens nx 11 – part design – Import & Scale Images – Raster Image

The „raster image“ command is really easy to use and therefore highly recommended for planar images – enjoy!

videotutorial – siemens nx 11 – part design – Import & Scale Images – Decal Sticker

A little bit hard to see what happens – but apart from that quite easy – enjoy!

Videotutorial – siemens nx 11 – part design – 6.4 Bearing Block – Lagerbock

Nice little exercise to show you some usefull things, enjoy!

Videotutorial – siemens nx 11 – part design – Kurbelgehaeuse – Crankcase

A remake of a very old one – now in HD with audio commentary – enjoy!

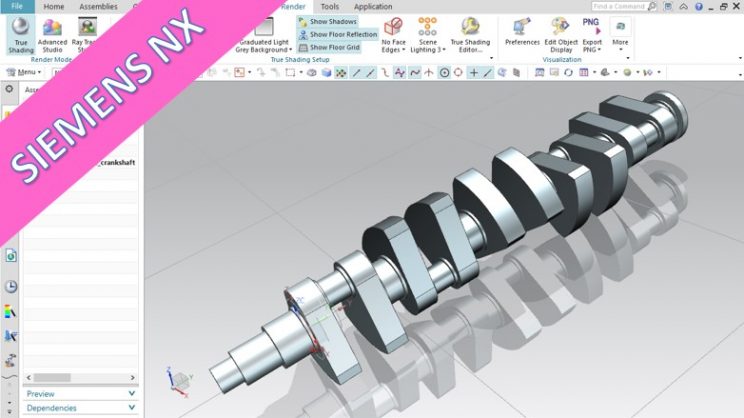

Videotutorial – siemens nx 11 – part design methods – Crankshaft – „derived“ version

I ´ve used the wave geometry linker and interpart expressions – enjoy!

Videotutorial – siemens nx 11 – part design – Userwish – Dome – Kuppel

Very similar to the other programs – I used „fill surface“ because the „bounded plane“ caused some problems – enjoy!
